Premium KD Wardrobe Lockers

are traditional louvered door lockers designed for storage of all personal belongings



Features:

• body construction: Knock down (KD) with 24 gauge solid body components

• doors: 16 gauge louvered doors, 18 gauge for 9" wide, are standard. Plain, Secure-Air-Flow, Safety-View and diamond perforated door styles are available
• frame: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
• handle: Deep-drawn seamless stainless steel recessed handle
• door strike: Continuous vertical door strike at both hinge and latch side
• latching: 12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching:
• 3-point latching for openings 48" high and higher
• 2-point latching for openings 20" high thru 36" high
• hinges: 16 gauge continuous piano hinge
• hooks: 2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1 - single hook for 9" wide openings 30" and higher
• shelves: Hat shelf for single tier openings 60" and 72" high
• notes: All production KD lockers are supplied without legs unless otherwise specified
• warranty: 2 years

Colors: choose from any of our 24 Designer Powder-Coat colors

	Premium KD Locker Sizes	Width	Depth	Opening Height	Frame Height
Wardrobe	Single Tier	9" 12" 15" 18" 24"	12" 15" 18" 21" 24"	36" 48" 60" 72"	36" 48" 60" 72"
	Double Tier	9" 12" 15" 18"	12" 15" 18" 21"	30" 36"	60" 72"
	Triple Tier	9" 12" 15" 18''	12" 15" 18" 21''	20" 24"	60" 72"
Box	Four Tier	12'', 15''	12" 15" 18"	15'', 18''	60" 72"
	Five Tier	12'', 15''	12" 15" 18"	12'', 14.4''	60" 72"
	Six Tier	12'', 15''	12" 15" 18"	12''	72"
Specialty	Two Person	15'', 18''	12" 15" 18"	N/A	60" 72"
	Duplex	15''	12" 15" 18"	60'', 72''	60" 72"
	Sixteen Person	72''	18''	12''	78'' (includes 6'' legs)
	4 Wide wall mount	48''	18"	12''	14-3/4

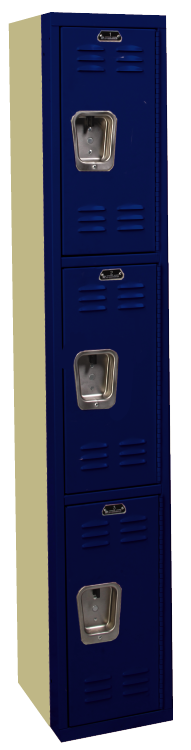

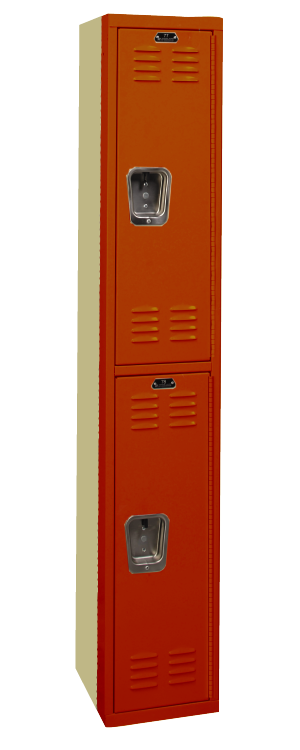

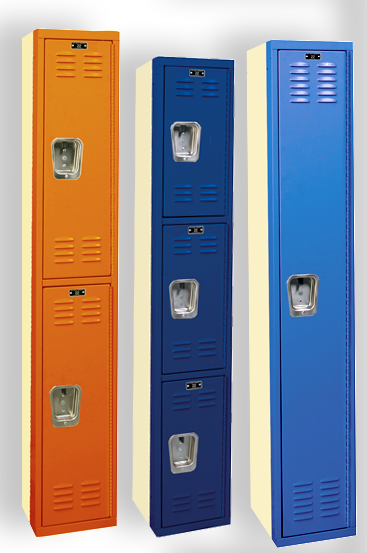

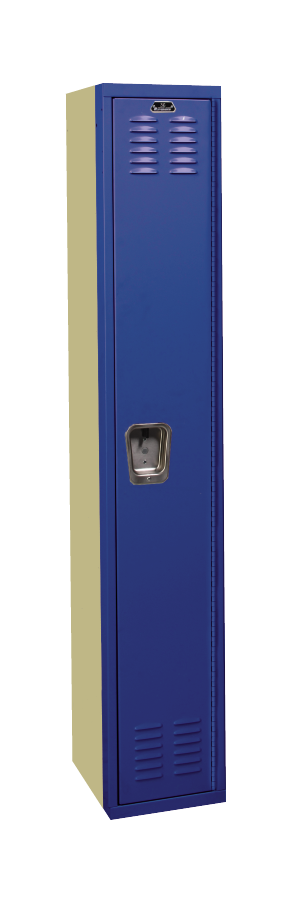

Photos:
