Hallowell SECURITY MAX™ heavy-duty all-welded lockers offer the highest available security...
by incorporating an extra heavy-duty three-point turn-handle locking mechanism and the versatility of adjustable interior shelves. Available in ventalated and solid locker versions.

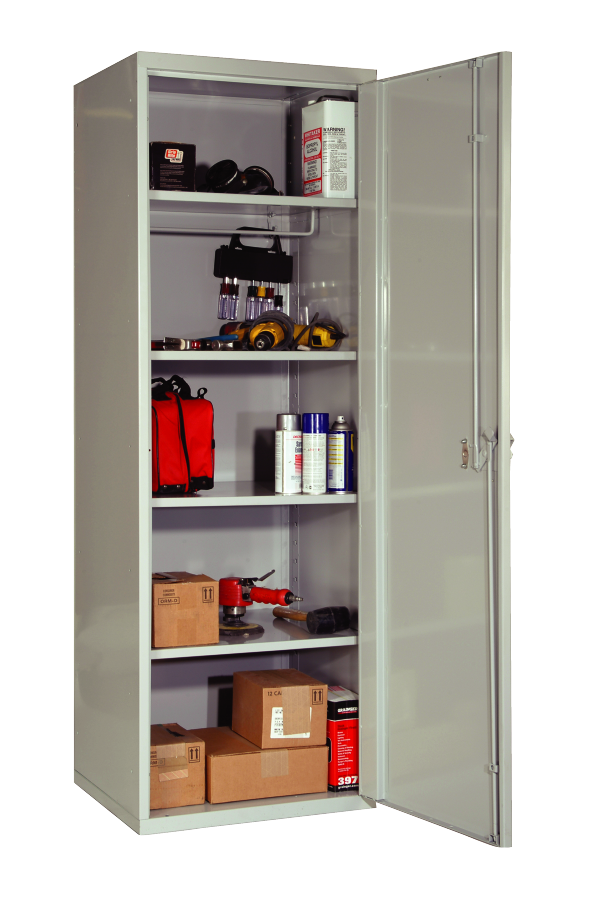

Security Max locking cabinets are ideal where heavy-duty and versatile storage is needed for tools, gear, sports equipment, uniforms and clothing.
Features:
BODY CONSTRUCTION: All-welded construction, 16 gauge heavy-duty body and 18 gauge back, Sides formed to be integral with front vertical frame and are reinforced using two front-to-back channel stiffeners welded to the underside.

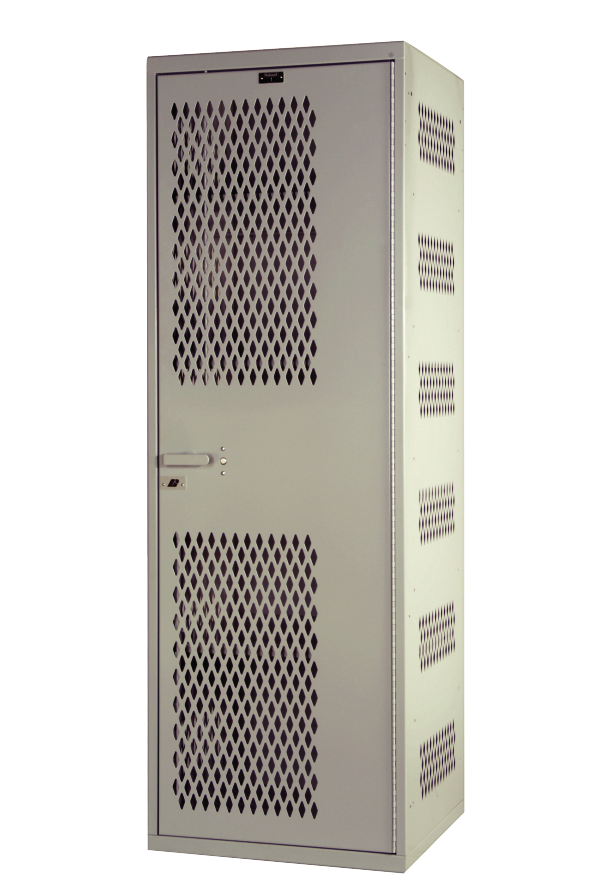

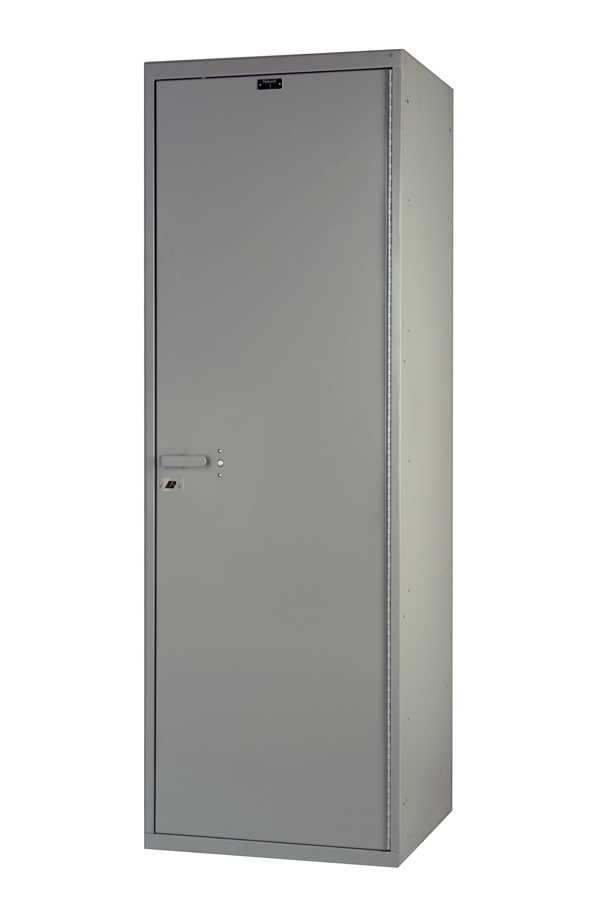

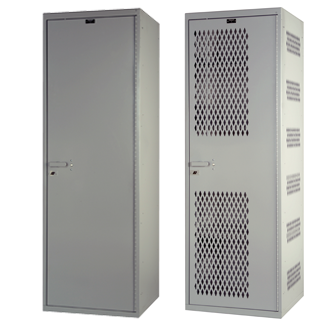

BODY STYLES: One tier, one wide. Available in solid or ventilated versions.
HINGES: Continuous piano type.

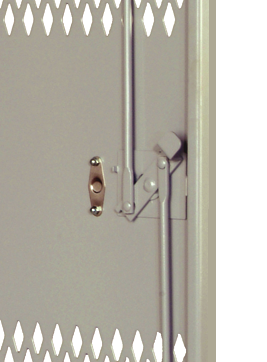

HANDLE: Cremone 3-point high-security turn handle latching with heavy-duty 3/8" lock rods which engage the top and bottom locker frames while the cam engages the frame at the door jamb near the handle

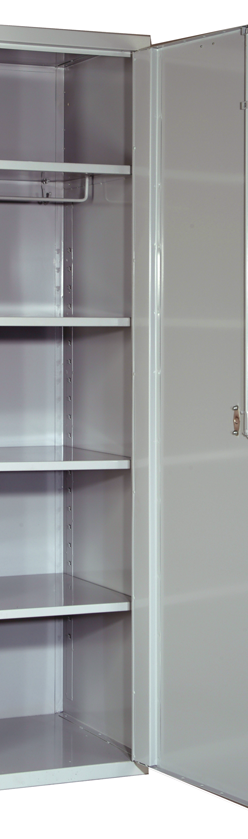

door: 14 gauge door with a full height welded in door stiffener.

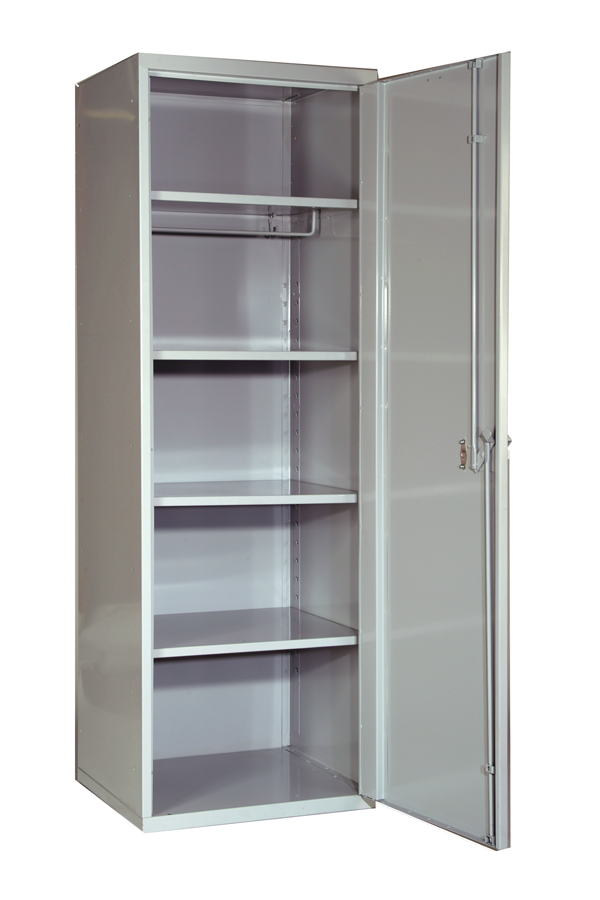

SHELVES: Upper welded hat shelf. Additional shelves can be ordered and are adjustable on 3" centers.
COAT ROD: 3/8" diameter rod is welded to underside of upper shelf.
HOOKS: Two single back hooks.
| Width | Depth | Opening Height |
Frame Height |
Tier | Grouping | Openings Group |
Assembled Cat # |
Color |
|---|---|---|---|---|---|---|---|---|
Ventilated Models |
||||||||
| 18 | 22 | 72 | 72 | 1 | 1-wide | 1 | HTA822-1AS | PL |
| 24 | 22 | 72 | 72 | 1 | 1-wide | 1 | HTA422-1AS | PL |
Solid Models |
||||||||
| 18 | 22 | 72 | 72 | 1 | 1-wide | 1 | HTC822-1AS | PL |
| 24 | 22 | 72 | 72 | 1 | 1-wide | 1 | HTC422-1AS | PL |
Additional Shelves |
||||||||
| 18 | 22 | UAS1822 | PL | |||||
| 24 | 22 | UAS2422 | PL | |||||
Color:
Light Gray
[PL]
Photos:
