Welded Open-Front Gear/Sport Lockers
Welded Quick-Ship Open-Front Gear/Sport Lockers are perfect for sports equipment, gear and tool storage.
They feature our unique tubular framed design with flattened expanded metal sides, a lifetime warranty and always ship fully-assembled!
Description:
- STOCK COLORS: 721 Relay Red [RR] and 717 Grand Slam (blue) [GS]
- Lockers are painted the same color throughout - BODY COMPONENTS: 16 gauge body with 18 gauge back
- TOP/BOTTOM/HAT SHELF/BOTTOM: 16 ga. solid cold rolled sheet steel
- BASE: 14 ga. Channel Base at both front and back
- SIDES: 13 ga. 1/2" flattened expanded metal fully-framed on all four sides
- ACCESSORIES: Includes 1/2" diameter conduit coat rod, Coat hooks
Optional Security Box:
- DOOR: 14 ga. solid cold rolled sheet steel
- SIDE 16 ga. solid cold rolled sheet steel
- HINGES: Two heavy-duty 13 gauge 7-knuckle 3-1/2"
- LOCKING: Single-Point projecting finger-pull padlock hasp
Optional Foot Locker:
- SEAT: 14 ga. cold rolled sheet steel with reinforcing channel welded to underside
- FRONT 14 ga. cold rolled sheet steel with mini-louvers for ventilation
- LOCKING: Rigid Padlock Hasp
 |
 |
 |
 |
Base Model |
With Security Box |
With Foot Locker |
With Security Box & Foot Locker |
Color:
Relay Red
[RR]
Grand Slam
[GS]
Catalog:
| Width | Depth | Height | Grouping | KD Catalog # |
|
|---|---|---|---|---|---|

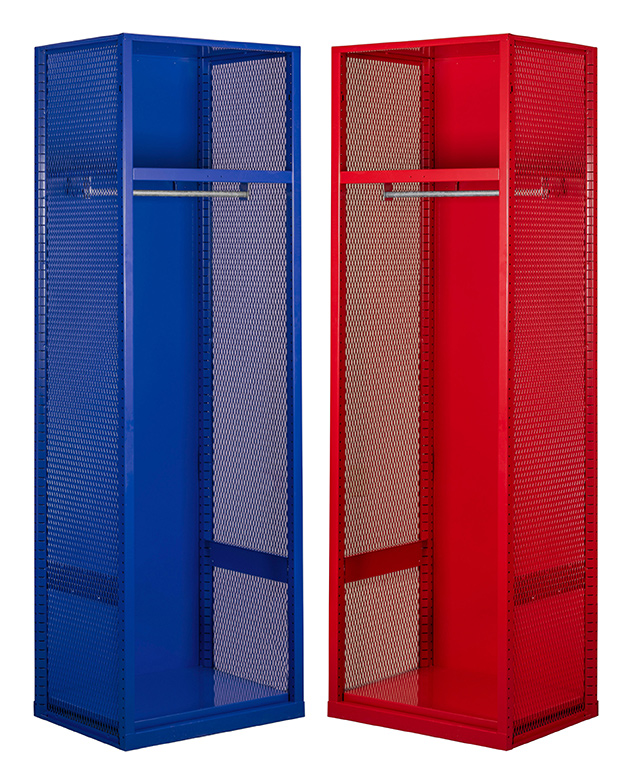

Base Model |
|||||
| 24" | 18" | 74-3/4" | 1-wide | WSNN482-1C | |
| 24" | 24" | 74-3/4" | 1-wide | WSNN442-1C | |

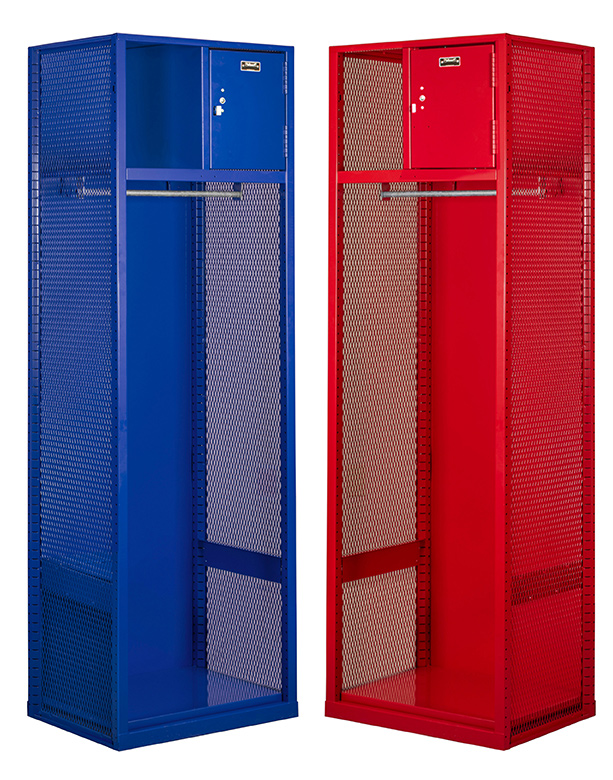

With Optional Upper Security Box |
|||||
| 24" | 18" | 74-3/4" | 1-wide | WSBN482-1C | |
| 24" | 24" | 74-3/4" | 1-wide | WSBN442-1C | |

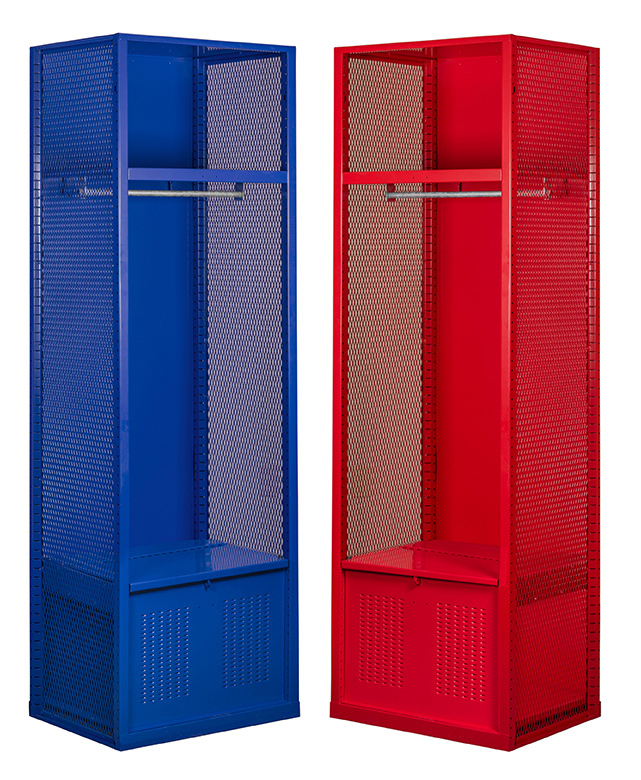

With Optional Lower Foot Locker |
|||||
| 24" | 18" | 74-3/4" | 1-wide | WSNF482-1C | |
| 24" | 24" | 74-3/4" | 1-wide | WSNF442-1C | |

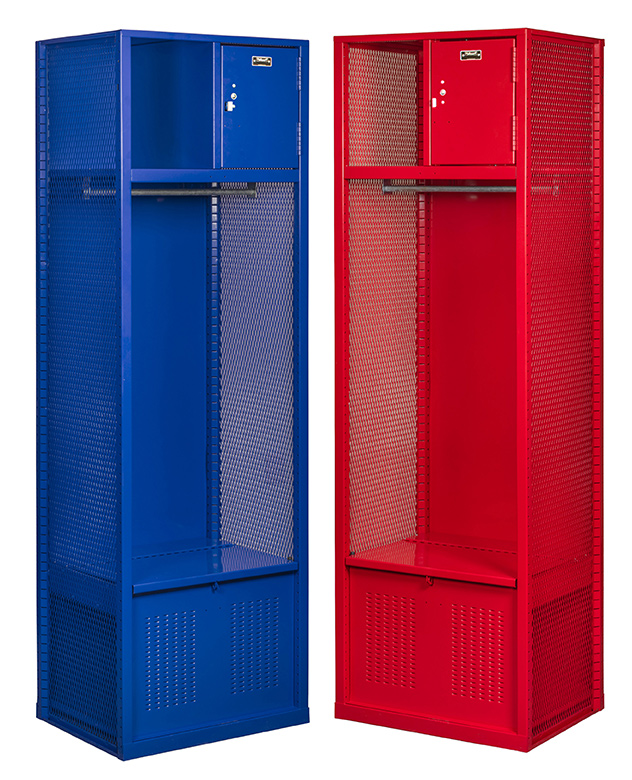

With Optional Security Box and Foot Locker |
|||||
| 24" | 18" | 74-3/4" | 1-wide | WSBF482-1C | |
| 24" | 24" | 74-3/4" | 1-wide | WSBF442-1C | |
