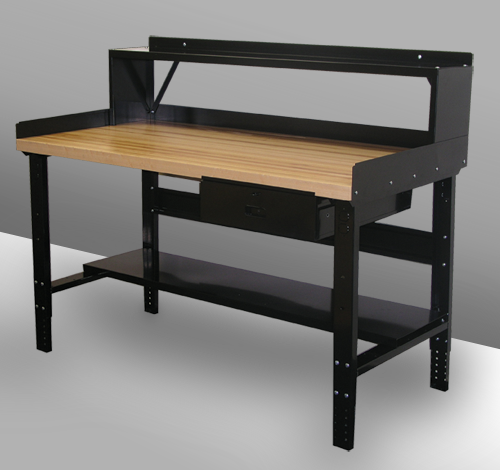

Heavy-Duty Adjustable Leg Workbenches

Hallowell Workbenches are constructed of only the finest materials and represent the pinnacle in quality, strength, and stability. Our industrial workbenches are designed to withstand the harshest work envornments year-in and year-out. With the flexible selection of standard and cost-effective components, these highly efficient units insure maximum productivity in the workplace.



COMPONENTS:

• Riser: 12" high x 10" deep shelf above the work surface.
• Drawer: 24" deep x 18" wide x 6" high Easily installs under the bench top and can be secured with an optional padlock.
• Back and End Stops: A 3" high barrier with rounded front corners.
• Lower Shelf: Full width 11 3/16" deep.
• Stringer: Required for lateral stability and acts like a stop for a second bottom shelf.
• Adjustable Legs: allows for easy adjustment of height and provide stability.

  Bench Tops:

  • Steel Top: heavy 12 gauge steel with no holes on the work surface - withstands hard shop use for years. Will not crack, splinter gouge or absorb oil.
  • Shop Top: Layered highdensity particleboard offers superior screw holding characteristics. The top and bottom layers are sealed to resist conventional spills. The nonconductive, splinter-proof top is 30 % harder than maple.
  • Laminated Hardwood Top: Thoroughly seasoned, kiln dried hardwood, face-glued to provide an extremely durable, attractive and long lasting work surface.

Download Hallowell Adjustable Leg Workbench Specifications
Download Hallowell Adjustable Leg Workbench Assembly Instructions
Download Hallowell Adjustable Leg Workbench Caster Kit Instructions
Download Hallowell Adjustable Leg Workbench Wiring Kit Instructions



Catalog Numbers:

Width	Depth	Height	Top	Catalog #	Color
Workbenches (*includes: legs, top and stringer)
48	30	34	Shop Top	HWB4830E-ME	ME Midnight Ebony
60	30	34	Shop Top	HWB6030E-ME
72	30	34	Shop Top	HWB7230E-ME
72	36	34	Shop Top	HWB7236E-ME
48	30	34	Laminated Hardwood	HWB4830M-ME
60	30	34	Laminated Hardwood	HWB6030M-ME
72	30	34	Laminated Hardwood	HWB7230M-ME
72	36	34	Laminated Hardwood	HWB7236M-ME
48	30	34	12 gauge Steel	HWB4830S-ME
60	30	34	12 gauge Steel	HWB6030S-ME
72	30	34	12 gauge Steel	HWB7230S-ME



Width	Depth	Height	Item	Catalog #	Color
Workbenches Add-on Accessories
18	24	6	Drawer	HWB-BD-60-ME	ME Midnight Ebony
48	30	6	Back & End Stop Kit	HWB-BES-4830-ME
60	30	6	Back & End Stop Kit	HWB-BES-6030-ME
72	30	6	Back & End Stop Kit	HWB-BES-7230-ME
72	36	6	Back & End Stop Kit	HWB-BES-7236-ME
48	10	12	Riser	HWB-BR-48-ME
60	10	12	Riser	HWB-BR-60-ME
72	10	12	Riser	HWB-BR-72-ME
48	12		Lower Shelf	HWB-LS-48-ME
60	12		Lower Shelf	HWB-LS-60-ME
72	12		Lower Shelf	HWB-LS-72-ME
		24	Leg Extension	HWB-LE-24-ME
	Caster Kit for 30” deep Adjustable Leg Workbench			HWB-CK30
	Caster Kit for 36” deep Adjustable Leg Workbench			HWB-CK36

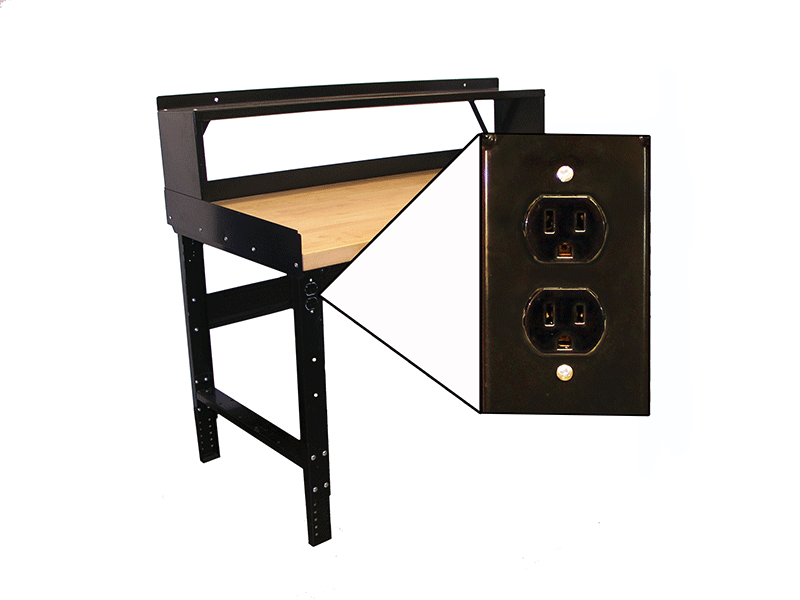

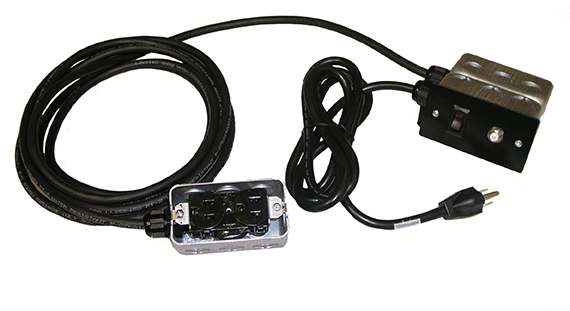

	Wiring Kit for Adjustable Leg Workbench			HWB-WK
