Hallowell Hi-Tech Shelving Systems
Hi-Tech shelving is strong and versatile enough to be useful in almost any situation.
H-Tech Shelving Systems Gallery:

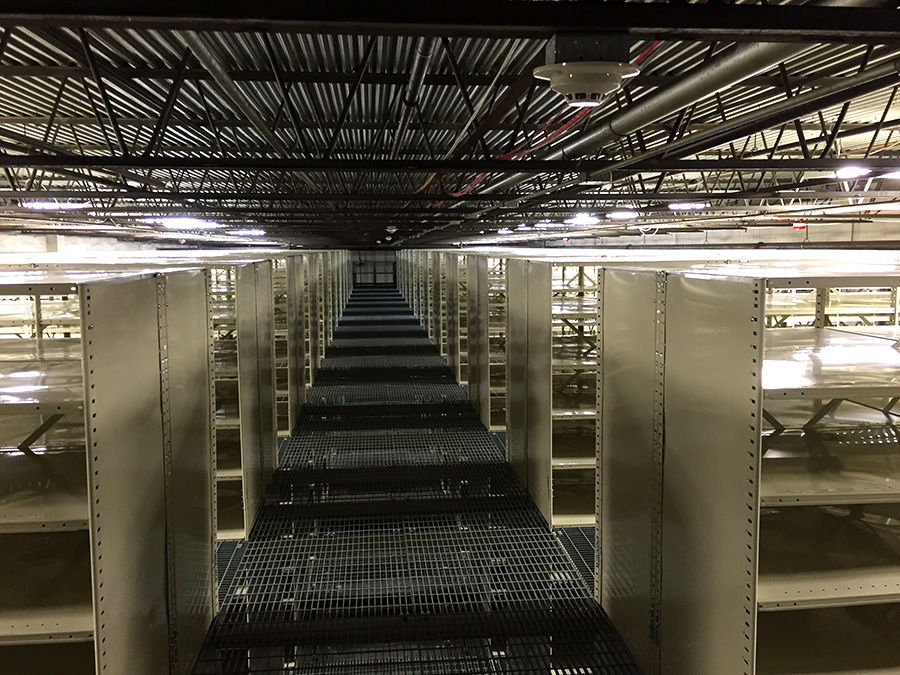

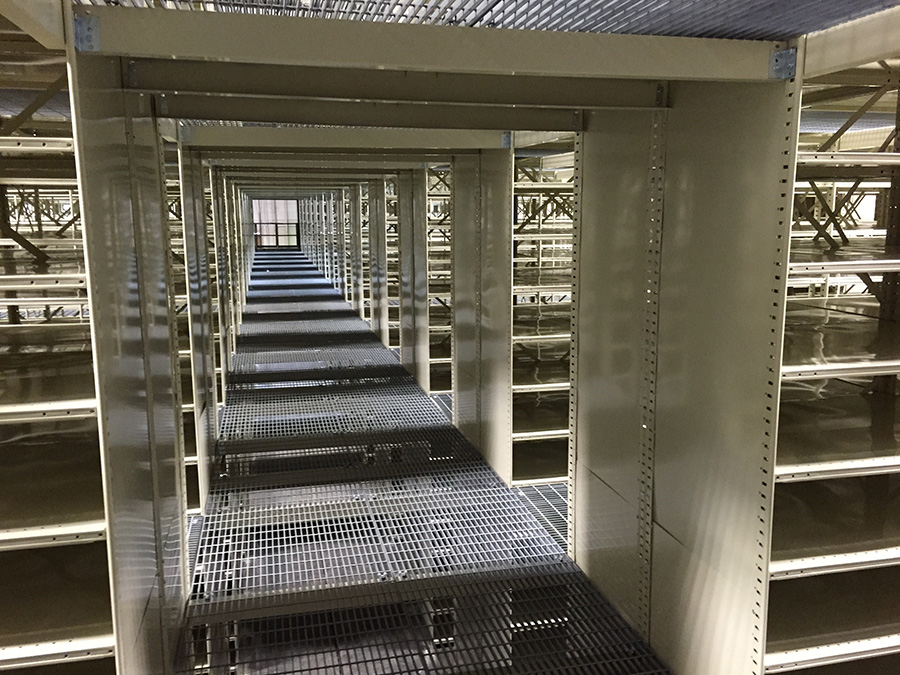

Multi Level

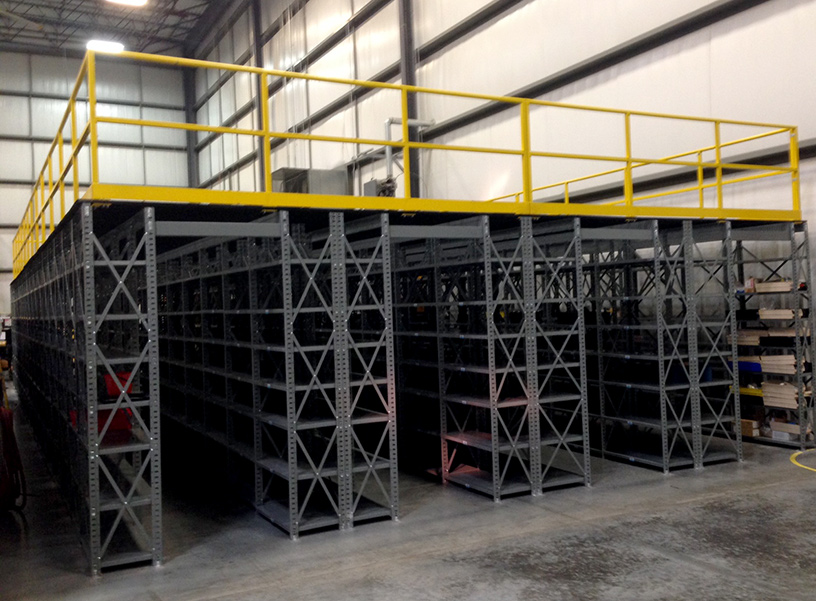

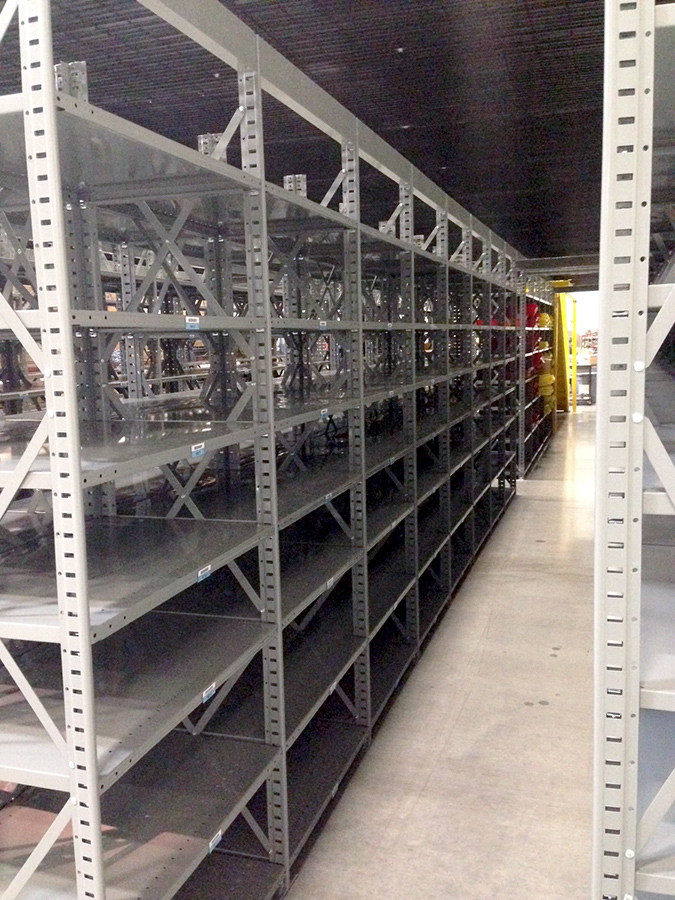

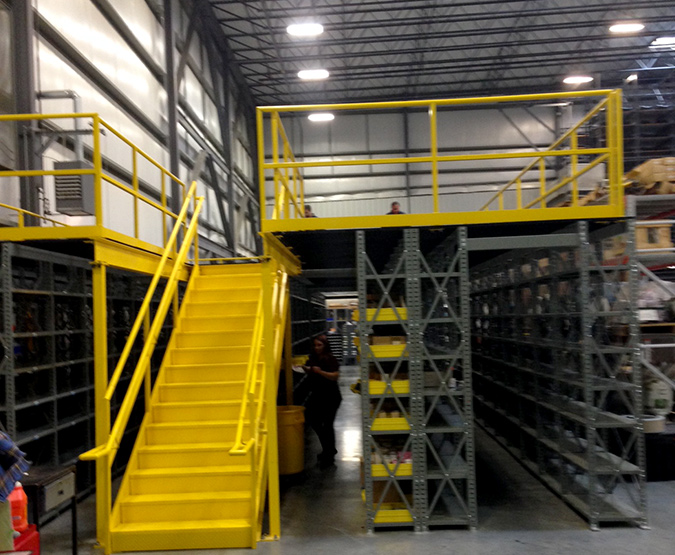

Deck Over
Components

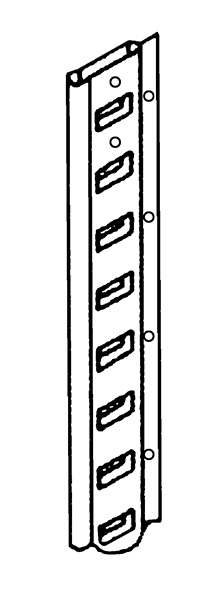

Beaded Front Posts
True flush construction. Slotted on 1-1/2’’ centers for easy shelf adjustment. Splice multiple posts for additional height.

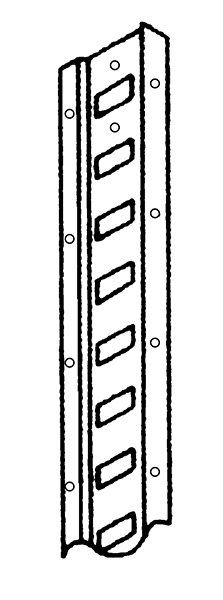

Angle Back Posts
Angles for single or end units. Slotted on 1-1/2” centers for easy shelf adjustment. Splice multiple posts for additional height.
T-Posts
Two back Posts welded together. For use when adjoining models are added to form a continuous row.

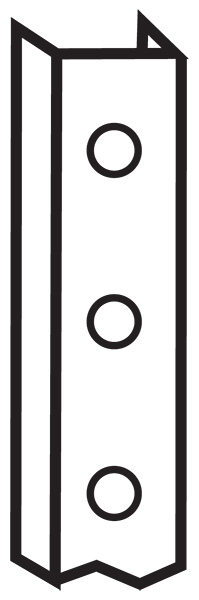

Post Slice Channels
A channel formed internal splice. Used to splice beaded front posts, back posts and T-posts for added height.

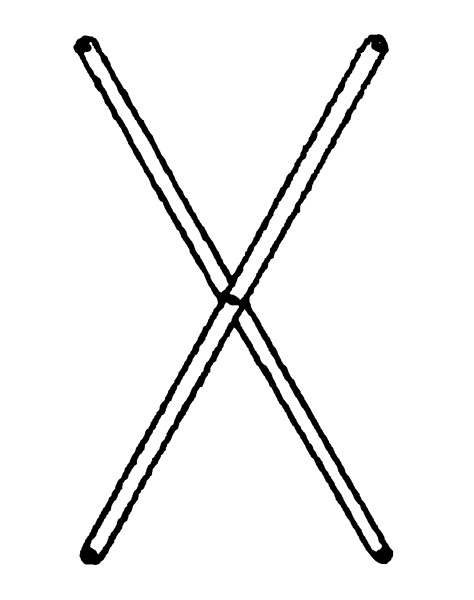

Back Sway Braces
(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an “X”.

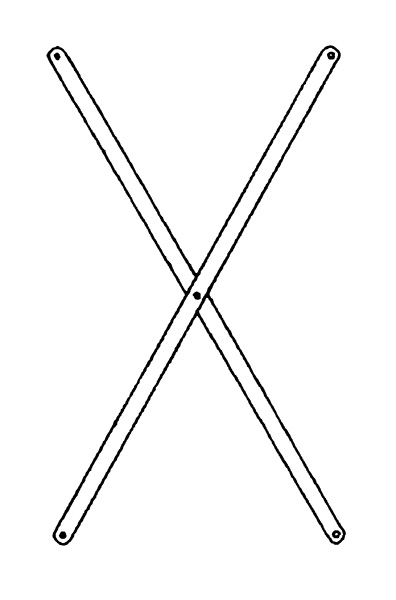

Side Sway Braces
(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an “X”.

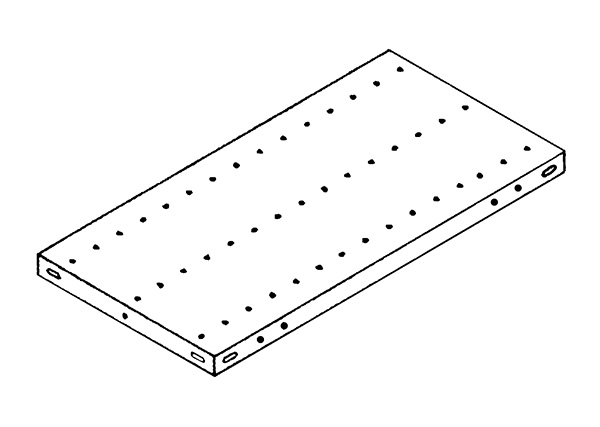

Box Beam Shelves
Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll formed & triple flanged. Top pierced to accept dividers.
Shelf Clip
One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

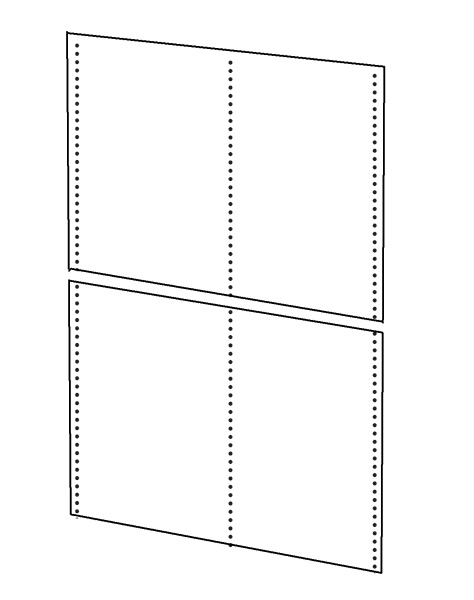

Back Panels,
24 & 16 Gauge
Two piece sections punched on 1” centers at vertical edges and center for mounting on back of posts and shelves.

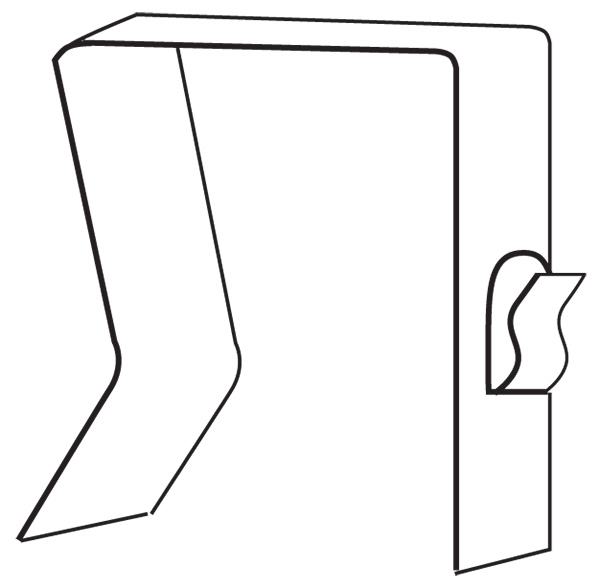

Back Panel Clips
Formed to fit bottom flange of standard shelf and tabbed to pick up holes in center of back panel. Holds back panel to shelf and prevents panel bowing.

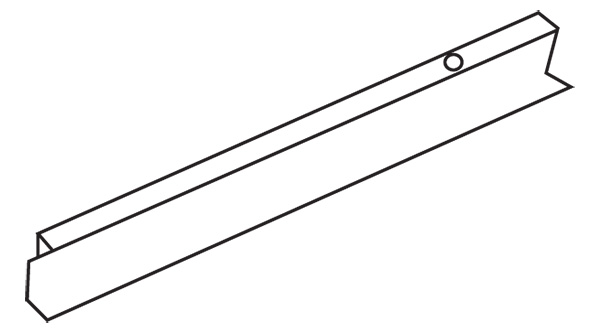

Base Strips
Shaped to fit directly between bottom shelf and floor. 2-15/16” high giving an overall base height of 3" including bottom of shelf.

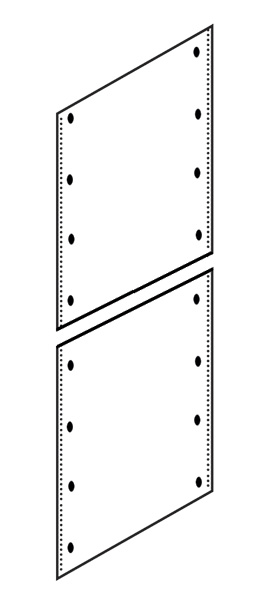

Side Panels
Two piece panels are bolted to standard Beaded, Angle and T-Posts when solid sides are required.

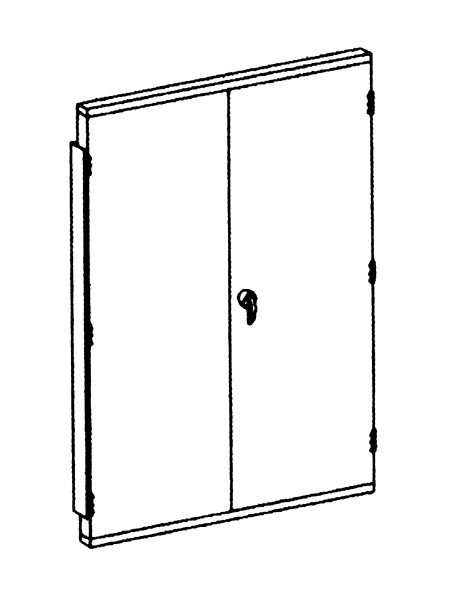

Swinging Doors
(With Locks)
Attaches to beaded front posts & opens quietly 150°. Chrome finished handle with built-in grooved key cylinder lock.

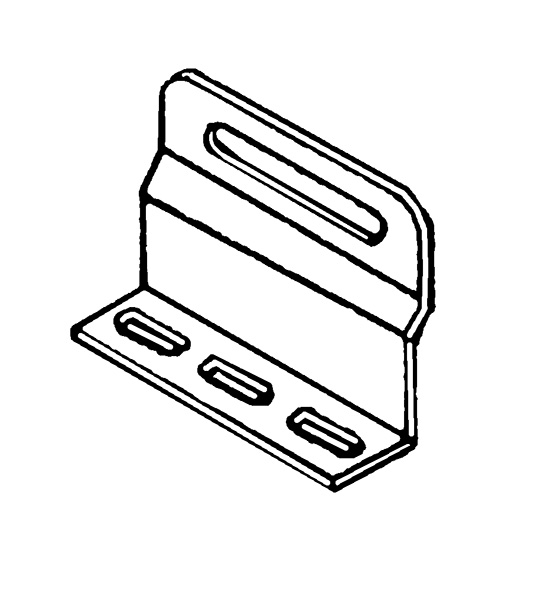

Universal Clip
To Mount Doors
Available in sets of 6. One set required to mount swinging doors to beaded front posts.

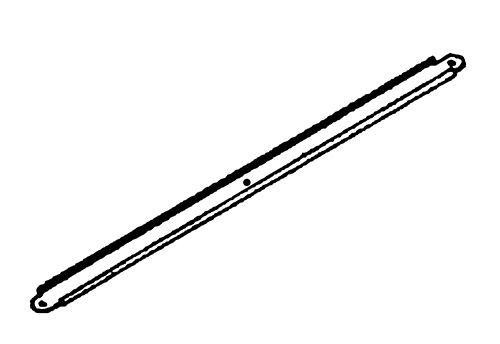

Label Holders
Pierced for attaching to front flange of shelves with top and bottom edges folded over to accommodate labels approximately 1” high.

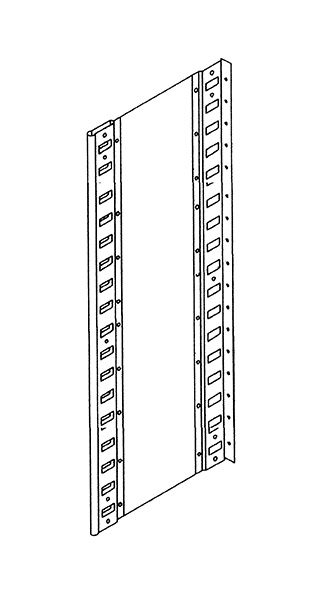

Welded End Panels
Sections consisting of beaded front post, angle back post and one-piece side panel.Factory welded.

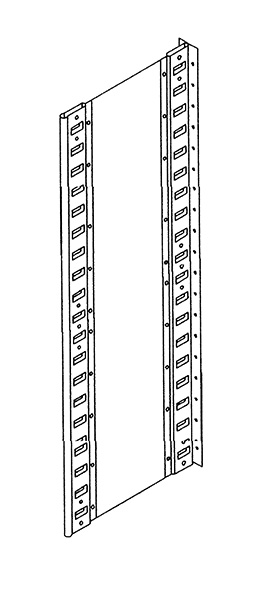

Welded T-Panels
Sections consisting of beaded front post, back T-Post and one-piece side panel.Factory welded.

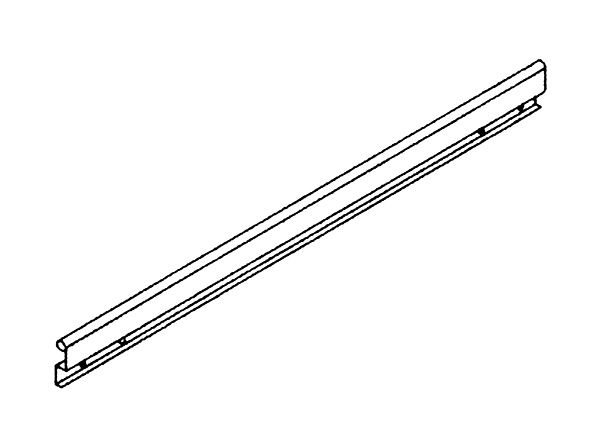

Bin Fronts
Offset type with bead at top and triple flange at bottom to telescope over shelf flange.

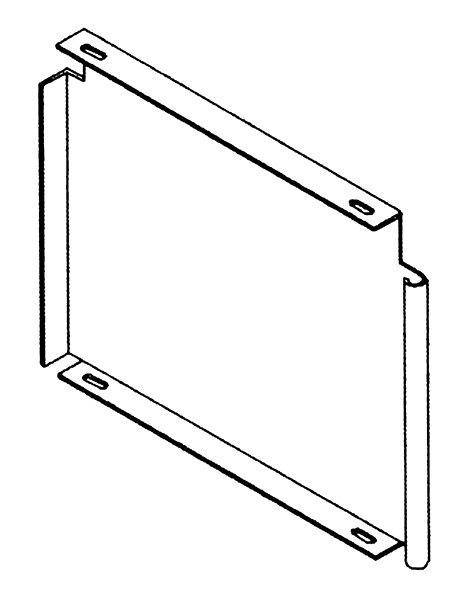

Full & Partial Dividers
Flanged at top rear and bottom, or just bottom to form shelf dividers.

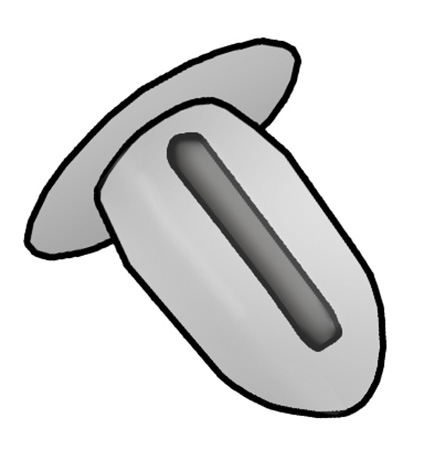

Nylon Buttons
Available in sets of 6. One set required to mount swinging doors to beaded front posts.
Cross Aisle Supports
For beaded posts.
Cross Aisle Support Brackets
Brackets for cross aisle supports.
Down Aisle Supports
For beaded posts and H-posts.
Down Aisle Support Brackets
For beaded posts and H-posts.
Combination Clips
Connection Strips
Row Ends
Connection Strips
Intermediate

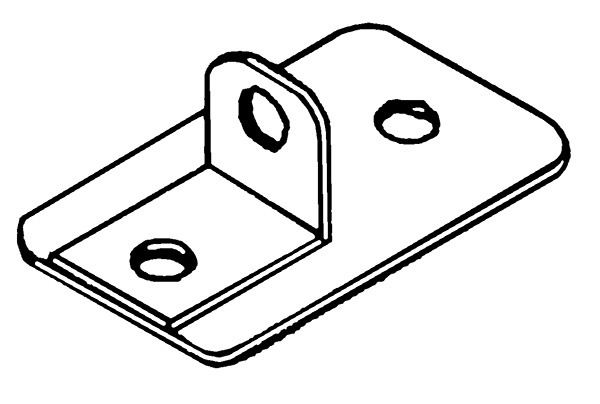

Foot Plates
For beaded, angle and T-posts
Shim Plates
Medium/light-duty or heavy-duty

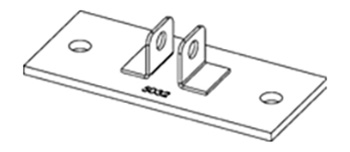

Foot Plate
Extra-heavy-duty for beaded, angle and T-postsLearn more about our stock shelving here.
