Features:

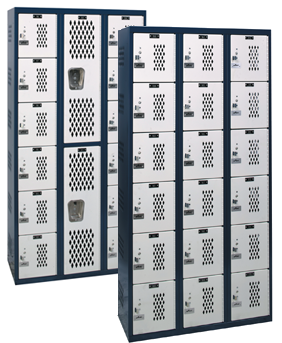

• body construction: Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base. 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back
• doors: 14 gauge diamond perforated doors are standard. Louvered, Secure-Air-Flow and plain door styles are available.
• handle/latching: Single-point thru-the-door projecting finger pull handle with padlock hasp. Optional deep-drawn seamless stainless steel recessed handle is available
• hinges: 16 gauge continuous piano hinge
• hooks: None
• shelves: 16 gauge intermediate shelves
• warranty: Lifetime
• sizes: See chart below for standard box locker sizes

Widths for all-welded box locker openings 12", 15", 18"
Depths for all-welded box locker openings 12", 16", 18", 22"

Tier	Opening Heights	Nominal Column Heights
Four Tier	12", 15", 18"	48", 60", 72"
Five Tier	12", 14.4"	60", 72"
Six Tier	8", 10", 12"	48", 60", 72"
Seven Tier	(6) 10" & (1) 12"	72"
Eight Tier	8", 9"	64", 72"
Nine Tier	8"	72"

Note: Please note that the actual units supplied will be fabricated to meet layout and job conditions in standard width units up to 60'' wide
