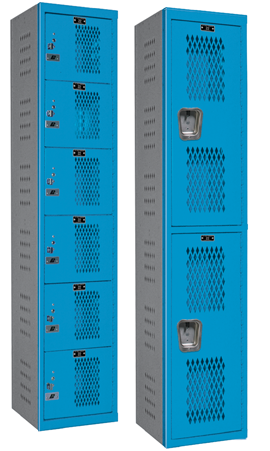

Heavy-Duty Ventilated KD Lockers (HDV)

Heavy-Duty Ventilated KD stock lockers are available in single, double and six tier lockers. Production lockers are standard with 6” legs (available without legs at a nominal cost) Coat rods are available for single tier at a nominal cost.

Features:

• body construction (Wardrobe & Box lockers): Knock down with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back
• doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and Safety-View door styles are available
• frame: 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
• hinges: 16 gauge continuous piano hinge
• door strike: Continuous vertical door strike at both hinge and latch side

WARDROBE LOCKERS (Doors 20" and higher):

• handle: Deep-drawn seamless stainless steel recessed handle
• latching: Gravity lift-type multi-point spring loaded latching:
• 3-point latching for openings 48" high and higher,
• 2 point latching for openings 20" high thru 36" high
• hooks: 2-single hooks and 1-double hook is standard.
• 1- double hook only for triple tier and 1-double
• 1 - single hook for 9" wide openings 30" and higher
• shelves: 16 gauge hat for single tier openings 60" and 72" high

BOXLOCKERS (Doors 18" high and under):

• handle: Single-point thru-the-door finger pull padlock hasp
• hooks: None
• notes: All production KD lockers are supplied without legs unless otherwise specified
• warranty: 2years

**QuickShip HDV Lockers are Available for immediate shipment in both #729 Tan and #725 Dark Gray.
