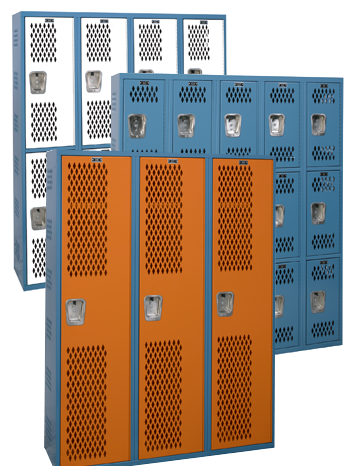

HGLV-02 Gravity Latch Ventilated Lockers





Features:

• body construction: Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back
• doors: 14 gauge diamond perforated doors are standard. Plain, Secure-Air-Flow, Safety-View and louvered door styles are available
• handle: Deep-drawn seamless stainless steel recessed handle
• door strike: Continuous vertical door strike at both hinge and latch side
• latching: 12 gauge latch hooks MIG welded to frame, gravity lift-type multi-point spring loaded latching:
• 3-point latching for openings 48" high and higher
• 2-point latching for openings 20" high thru 36" high
• hinges: 16 gauge continuous piano hinge
• shelves: 16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
• hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher
• warranty: Lifetime

Tier	Width	Depth	Column Heights
Single Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Double Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"
Triple Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	60" 72"
Note: All welded lockers will ship in multiple column units up to 60'' wide to meet Individual job site conditions.
