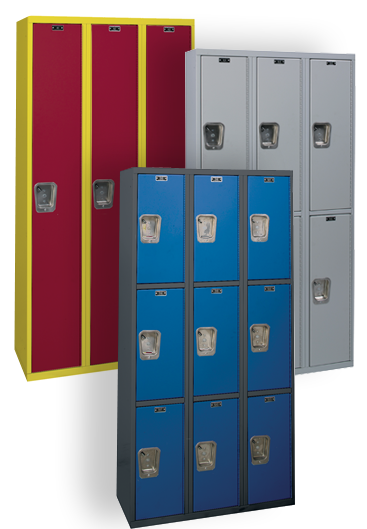

Single Point Solid - All-Welded Lockers
HSPS-05 Single Point Solid Lockers
Features:
- body construction: Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge solid sides are integral with front vertical frame, 18 gauge solid back
- doors: 14 gauge plain doors and a full-height door stiffener are standard. Secure-Air-Flow, diamond perforated and louvered door styles are available
- handle: Deep-drawn seamless stainless steel recessed handle
- door strike: Continuous vertical door strike at both hinge and latch side
- latching: Single-point maintenance-free quiet latching system, 11 gauge MIG welded latch
- hinges: 16 gauge continuous piano hinge
- shelves: 16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
- hooks: 2-single hooks and 1-double hook is standard.
- 1-double hook only for triple tier
- 1-double and 1-single hook for 9" wide openings 30" and higher
- warranty: Lifetime
Tier | Width | Depth | Column Heights |
---|---|---|---|
Single Tier | 9" 12" 15" 18" 24" | 12" 16" 18" 22" | 48" 60" 72" |
Double Tier | 9" 12" 15" 18" 24" | 12" 16" 18" 22" | 48" 60" 72" |
Triple Tier | 9" 12" 15" 18" 24" | 12" 16" 18" 22" | 60" 72" |
Note: All welded lockers will ship in multiple column units up to 60'' wide to meet Individual job site conditions. |
