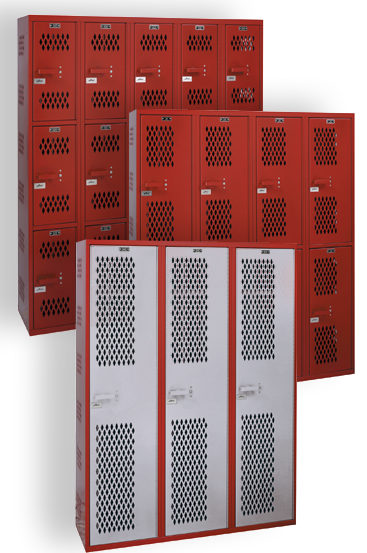

HTHV-01 Turn-Handle Ventilated Lockers

Features:

• body construction: Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge diamond perforated sides are integral with front vertical frame, 18 gauge solid back
• doors: 14 gauge diamond perforated doors are standard. Plain, Secure-Air-Flow, Safety-View and louvered door styles are available
• handle: 3-point turn-handle latching
• door strike: Continuous vertical door strike at both hinge and latch side
• latching: 3-point turn handle latching engaging at frame top, bottom, and center side of door, 3/8" diameter lock rods are the heaviest in the industry, 3/16" turn-handle welded to 11 guage cam, 11 guage lock plate keeper is welded to center side of frame
• hinges: 16 gauge continuous piano hinge
• shelves: 16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves
• hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher
• warranty: Lifetime
