Welded Single-Point Ventilated Lockers



Features:

• BODY CONSTRUCTION: All-welded, fully-assembled
• BODY STYLES: Single and double tier
• CUSTOM FEATURES: 16 gauge continuos top for added rigidity, 11 gauge MIG welded latch, continuous door strike at hinge and latch side

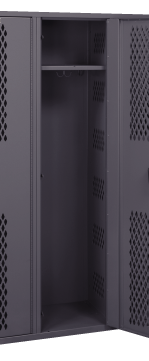

• DOOR: 14 gauge door is diamond perforated for added visibility and ventilation and includes a welded-in full height door stiffener
• HINGES: Continuous piano type
• HANDLE: Deep-drawn seamless stainless steel recessed handle with single-point thru-the-handle maintenance-free quiet latching system
• SHELVES: Hat shelf for single tier





Width	Depth	Opening Height	Frame Height	Tier	Grouping	Openings Per Group	Fully-Assembled Cat #	Color Selection

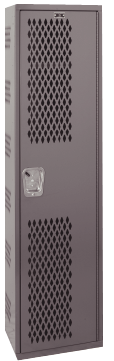

Single Tier
12	12	72	72	1	1-wide	1	HWBA212-1	HG

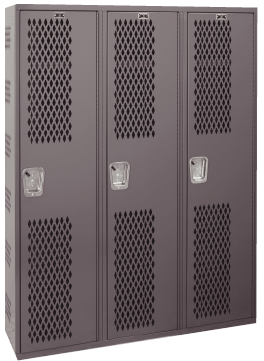

12	12	72	72	1	3-wide	3	HWBA212-111	HG
12	18	72	72	1	1-wide	1	HWBA282-1	HG
12	18	72	72	1	3-wide	3	HWBA282-111	HG
18	18	72	72	1	1-wide	1	HWBA882-1	HG
18	18	72	72	1	3-wide	3	HWBA882-111	HG

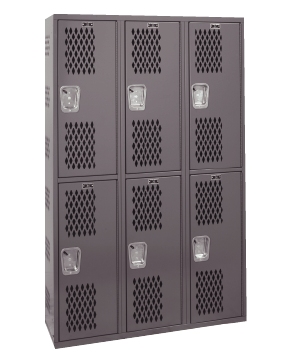

Double Tier
12	12	36	72	2	1-wide	2	HWBA212-2	HG
12	12	36	72	2	3-wide	6	HWBA212-222	HG
12	18	36	72	2	1-wide	2	HWBA282-2	HG
12	18	36	72	2	3-wide	6	HWBA282-222	HG
18	18	36	72	2	1-wide	2	HWBA882-2	HG
18	18	36	72	2	3-wide	6	HWBA882-222	HG

Colors:

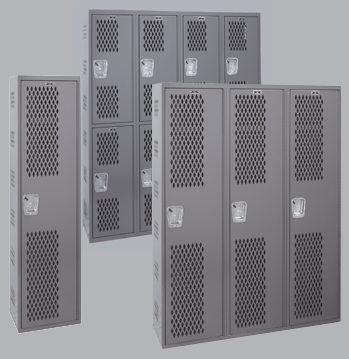

Photos:
